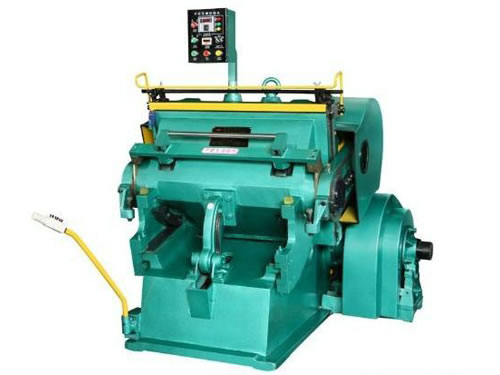

MB-800 Creasing Die Cutting Machine
Introduction
Creasing die cutting machine is a kind of special equipment for cutting various ordinary cardboards, corrugated boards, plastic sheets and leather products. This flat press indentation line cutter is applicable for printing, packaging, plastic production, and so on. The creasing and cutting machine enjoys the advantages of compact structure, stable performance, high precision, convenient use and safe operation.
Features
1. The flat press indentation line cutter's body adopts high quality materials with high strength and good rigidity.
2. The flywheel has high torque and big cutting pressure.
3. The sliding bearings of creasing and cutting machine are made of high quality cast copper alloy that features wear-resistance and vibration reduction.
4. Monolithic electromagnetic clutch is sensitive and reliable.
5. This flat press indentation line cutter possesses single pressure cutting, continuous press cutting and opening delay. The delay range is adjustable.
6. The creasing and cutting machine's security system is adjustable.
7. The design of the operation height is reasonable. The opening angle of pressure frame is big.
8. The main part of this die cutter includes plain bearing, flywheel, body and monolithic electromagnetic clutch.
9 This flat press indentation line cutter can be equipped with internal and external activity plate frame and centralized refueling device. (Standard configuration is the external activity plate frame)
10. For maintenance ofthis creasing and cutting machine, we should remember to do centralized oiling and lubrication every day.
Parameters of MB-800 Flat Press Indentation Line Cutter
| Model | MB-800 |
| Working Speed | 25±2 |
| Length of Creasing Cutting Line | less than 25 m |
| Motor Power | 4 Kw, 380 V |
| Overall Dimension | 1600 mm × 1820 mm × 1600 mm |
| Net Weight | 2800 kg |
| Gross Weight | 3000 kg |
Ruian Mingbo Machinery Co., Ltd. is a professional manufacturer of creasing and cutting machines in China. In addition to this flat press indentation line cutter, our company also offers paper cup machine, paper bucket forming machine, paper plate machine, paper bowl machine, flexo printing machine, etc. Our die cutters have been exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on.
