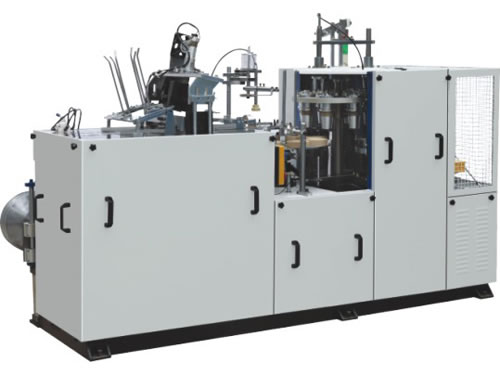

MB-S12 Double PE Coated Paper Cup Machine

Double PE Coated Paper Cup Machine

Description

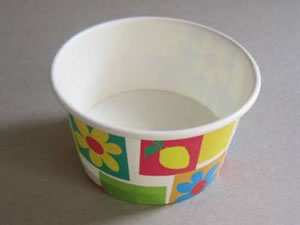

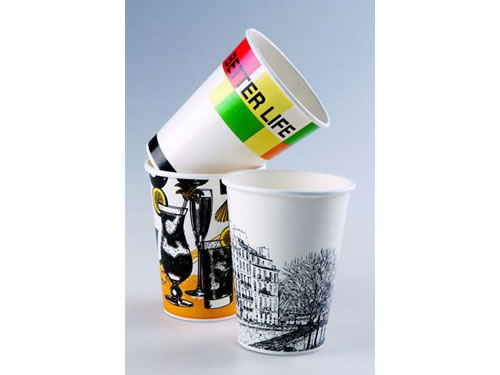

Double PE coated paper cup machine is a kind of multi-station automatic molding machinery. It runs a series of successive procedures including automatic paper feeding, sealing, oiling, bottom punching, heating, knurling, curling, cup discharging, etc. Mingbo double side PE coated paper cup machine (double PE coated paper cup making machinery) has become an ideal device for producing beverage cups, tea cups, coffee cups, advertising paper cups, market paper cups, ice cream paper cups or other disposable cone type food paper containers. If customers need much bigger cups, MB-S16, MB-S22 and many other models will be your good choice. In addition to the double side PE coated paper cup machine, we also produce single PE coated paper cup forming machine, ultrasonic double side PE paper cup making machinery, PLC controlled high speed paper cup machine and cup top flatten machine.

Features
1.The main part includes ultrasonic sealing system, index, speed reducer, motor, knurling set, bottom heating set and inverter.
2.Double side PE coated paper cup machine owns photoelectric detection, fault alarm and counting functions.
3.This paper cup making machinery Featuring simple operation, stable performance, small occupying area, high efficiency and more profit, this paper cup forming equipment has become the best choice for customers' investment.
4.Double side PE coated paper cup machine should be cleaned and lubricated regularly.
5.We use wooden cases to package this paper cup making machinery, which is convenient for sea transportation.

Technical Parameters of MB-S12 Double PE Coated Paper Cup Machine

Paper Cup Size Range 2.5 to 12 oz
Speed 45 to 50 pc/min
Paper Cup Top Diameter Min. 45 mm to Max. 104 mm
Paper Cup Bottom Diameter Min. 35 mm to Max. 75 mm
Paper Cup Height Min. 35mm to Max. 110 mm
Raw Material 180 to 350 gsm, Single or Double PE Coating Paper
General Power 5 Kw
Electricity 380 V, 3 Phases or 220V, 1 Phase
Weight 1500 kg
Measurement 2.6 m × 1.22 m × 1.7 m

Ruian Mingbo Machinery Co., Ltd. is a professional manufacturer of double side PE coated paper cup machines in China. In addition to this paper cup making machinery, our company also offers paper bowel machine, paper bucket forming machine, paper plate machine, die cutting machine, cup lid machine, flexo printing machine, etc. Our products have been exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on.
