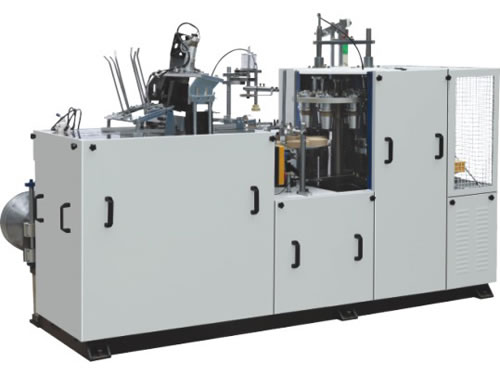

MB-S16 Ultrasonic Double PE Coated Paper Cup Machine

Ultrasonic Double PE Coated Paper Cup Machine

Introduction

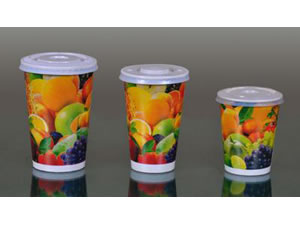

MB-S16 ultrasonic double PE coated paper cup machine is a piece of equipment developed from MB-S16 double side PE coated paper cup making machine. We install an ultrasonic system to this double PE coated paper cup machine to seal the paper cup body. This ultrasonic paper cup forming machine solves the problem that double side PE coated paper can not be sealed by heater. When a heater is adopted on the outside surface, the PE film will be burnt, become yellow or blackish and make cups be in ugly shape. Enjoying photoelectric detection, fault alarm and counting functions, Mingbo ultrasonic double PE coated paper cup machine has become an ideal device for producing special beverage cups, tea cups, coffee cups, ice cream paper cups or other disposable cone type food paper containers. We should remember to keep the ultrasonic paper cup forming machine clean and lubricate the machine with oil regularly.

Application
Ultrasonic double PE coated paper cup machine runs a series of successive procedures, such as automatic paper feeding, sealing, oiling, bottom punching, heating, knurling, curling, cup discharging, etc. This ultrasonic paper cup forming machine is suitable for producing paper cups of which the height is less than 1.40 mm and the size ranges from 12 to 16 oz.

Features
1. Ultrasonic double PE coated paper cup machine features stable performance, cheap operating cost, low investment and easy maintenance with minimum cost.
2. This equipment adopts optically controlled non-contact switch for automatic control.
3. This ultrasonic paper cup forming machine possesses micro-controlled transducer and speed adjustment function.
4. Ultrasonic double PE coated paper cup machine mainly consists of ultrasonic sealing system, index, speed reducer, motor, knurling set, bottom heating set and inverter. It is easy to operate.
5. Our company makes use of wooden cases for sea transportation.
6. We can easily change molds so as to produce paper cups with different sizes.

Types for Choice
In addition to this ultrasonic paper cup forming machine, we also produce single PE coated paper cup making machine, double PE coated paper cup forming machine, PLC controlled high speed paper cup machine and cup top flatten machine.

Technical Parameters of MB-S16 Ultrasonic Double PE Coated Paper Cup Machine

Paper Cup Size 12 to 16 oz
Speed 38 to 45 pcs/min
Paper Cup Top Diameter Min. 45 mm to Max. 104 mm
Paper Cup Bottom Diameter Min. 35 mm to Max. 75 mm
Paper Cup Height Min.110 mm to Max. 140 mm
Raw Material 180 to 380 gsm, Single PE or Double PE Coated Paper
General Power 7 Kw
Electricity 380 V, 3 Phases or 220V, 1 Phase
Weight 1600 kg
Measurement 2.8 m × 1.2 m × 1.8 m
